Conveyor roller
Return idlers Conveyor roller
Support the belt on its return run.
Confirm specifications from your drawing before ordering.
Request a quoteWhat to include in your inquiry
Bearing model and fit; tube and shaft dimensions; seal requirements; quantity and delivery destination.
Guides →Products
Selection reference
Selection reference
Reference ranges from the supplied selection manuals; confirm the exact combination against your drawing. A listed range does not mean every size and bearing combination is available.
Selection reference
| Tube outside diameter (mm) | Shaft diameter d (mm) | Bearing reference | Length L2 (mm) | Wall thickness S (mm) |
|---|---|---|---|---|
| 60-89 | 17-20 | 6203-6204 | 200-1200 | 1.75-3 |
| 89-108 | 20-30 | 6204-6306 | 200-1500 | 3-3.5 |
| 108-133 | 25-40 | 6305 / 6308 | 300-1800 | 3.5-4.5 |
| 133-159 | 40-50 | 6308 / 6310 | 500-2000 | 4.5-6 |
Discuss dimensions, end machining and sealing with your drawing. Load capacity and operating speed require an application-specific assessment.

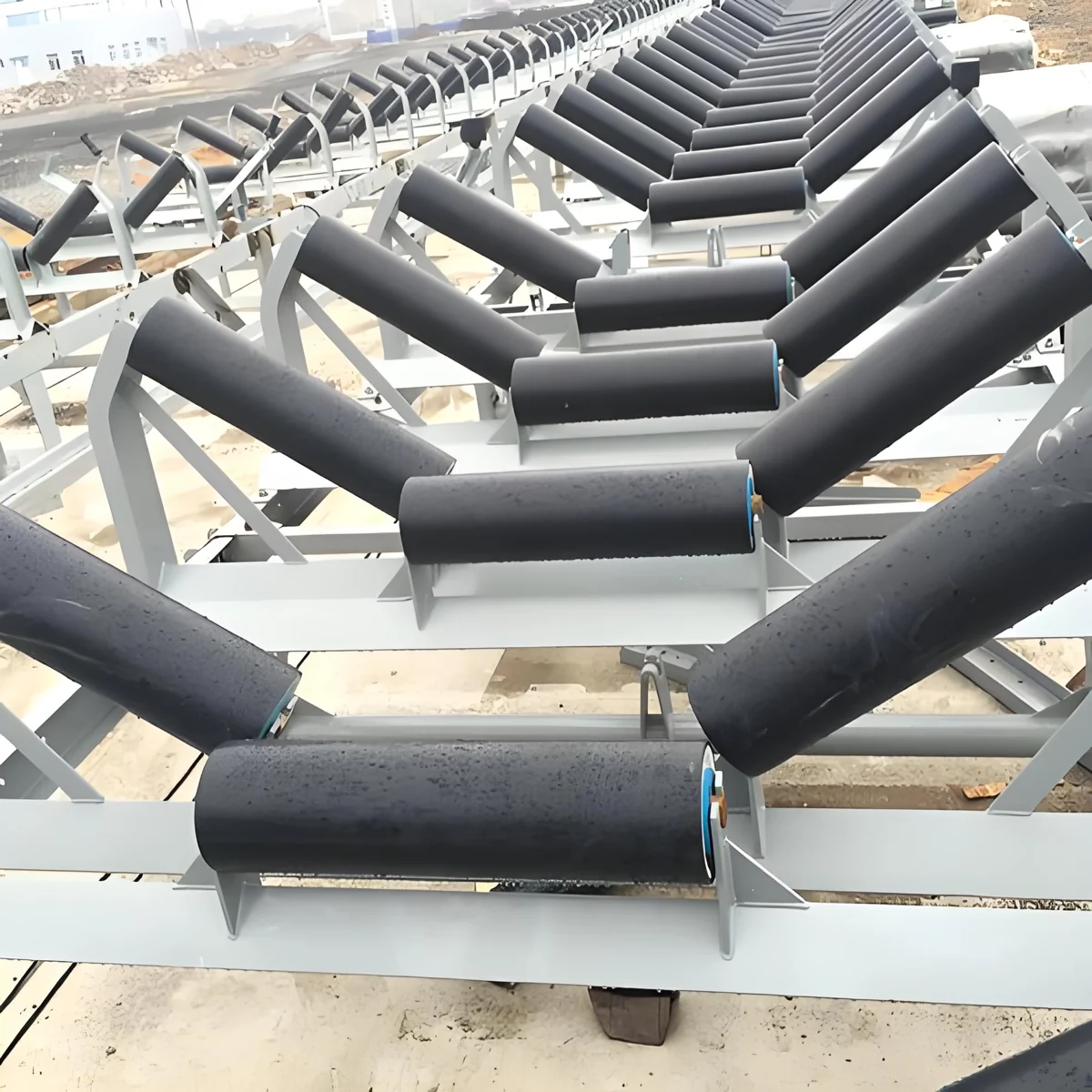

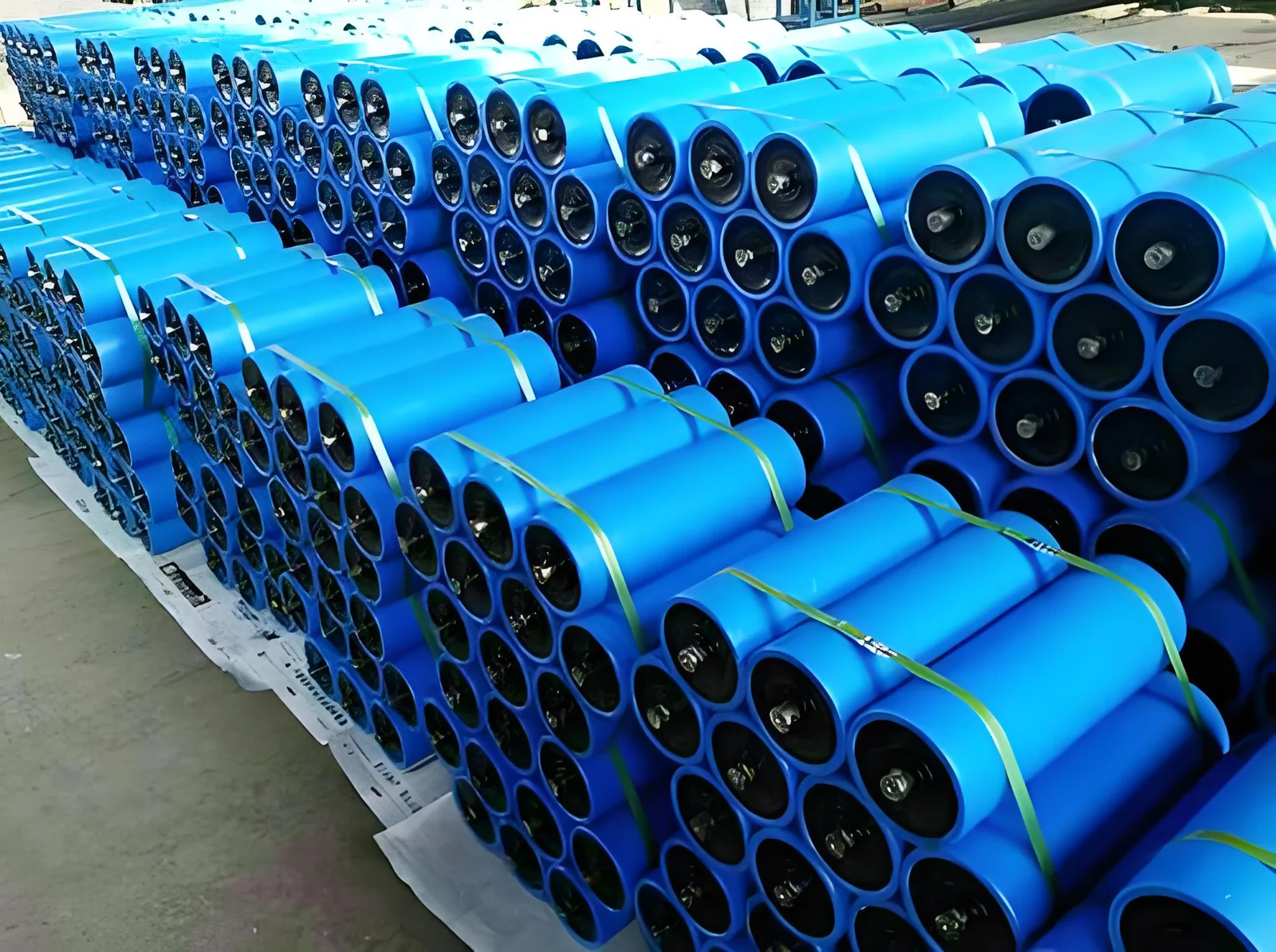

Product photographs
Reference photographs; confirm the supplied configuration against your drawing.
Manual prices are indicative, not a binding quotation. Confirm dimensions, compatibility, materials and delivery with us before ordering.
